CCTV System Design Mistakes That Cost You Security (And How to Avoid Them in Egypt 2026)
Introduction: Why Most CCTV Systems Fail Before They Even Start
In many security projects, CCTV is still treated as a simple procurement decision. The assumption is that selecting high-resolution cameras and connecting them to a recording system is enough to achieve security coverage. On paper, everything appears complete, but in real operation, the system often fails to deliver usable or reliable evidence.
This gap between expectation and performance is not caused by equipment quality alone. It is usually the result of design decisions made without engineering logic. In Egypt 2026, this becomes even more critical due to diverse environmental conditions, from dense urban areas to industrial zones with challenging lighting and installation constraints.
A CCTV system is not defined by what is installed. It is defined by how it is designed.
Mistake #1: Starting with Resolution Instead of the Security Objective
One of the most common design errors is beginning the process by selecting camera resolution. This creates a misleading assumption that higher resolution automatically equals better security performance.
In reality, resolution is only meaningful when it is aligned with a clear surveillance objective. A camera may capture 4K video, but if it is not positioned correctly or if the lens is unsuitable, the additional pixels add no real value.
The correct approach always begins with defining what the system is expected to achieve in each area. In some zones, the goal is simply to detect movement. In others, it may require recognizing individuals or identifying them with high precision. Once this requirement is clear, all technical decisions—lens, placement, and viewing distance—become structured and predictable.
Mistake #2: Treating Camera Placement as a Physical Constraint
In many installations, camera placement is dictated by convenience rather than design. Existing walls, ceiling points, or available infrastructure often determine where cameras are mounted, even if those positions are not suitable for proper coverage.
In engineered CCTV design, placement is not a constraint—it is a calculated output. The camera’s position must be derived from its optical properties and the required level of detail in the scene. Mounting height, tilt angle, and distance to target all directly influence how effectively pixels are distributed.
A difference of just one or two meters in height can significantly affect whether a face is identifiable or simply visible as a shape. This issue is frequently observed in large-scale deployments across Egypt, particularly in warehouses, residential compounds, and commercial buildings where coverage is prioritized over precision.
Mistake #3: Underestimating Environmental Lighting Conditions
Lighting is one of the most underestimated factors in CCTV performance. Many systems perform well during installation but fail under real environmental conditions, especially at night or during transitional lighting periods.
The challenge is not only brightness but also contrast and consistency. Strong backlight at entrances, reflective surfaces, and uneven illumination can all distort image clarity even when advanced camera technologies are used.
In outdoor environments across Egypt 2026, additional factors such as dust, heat haze, and artificial lighting variability further reduce image reliability. Without proper planning, cameras may record video that is technically clear but practically unusable for identification or forensic review.
Mistake #4: Ignoring Storage as Part of the System Design
Storage is often treated as a secondary component in CCTV design, added after cameras have already been selected. This approach leads to systems that either run out of storage too quickly or reduce recording quality to compensate.
In reality, storage design is directly linked to system performance. It depends on multiple variables, including resolution, frame rate, compression efficiency, and retention requirements. Any imbalance between these factors affects how long critical footage can be preserved.
Storage Impact Overview
| Factor | System Impact | Design Risk |
|---|---|---|
| Higher resolution | Increases data volume | Shorter retention period |
| Higher FPS | Smoother recording | Rapid storage consumption |
| Weak compression | Larger file sizes | Reduced recording duration |
| Incorrect sizing | Insufficient capacity | Loss of critical footage |
This is why storage must always be engineered as part of the initial design phase rather than adjusted after deployment.
Mistake #5: Designing CCTV as an Isolated System
Modern security environments no longer operate with standalone systems. CCTV becomes significantly more powerful when it is integrated with other security components such as access control, intrusion detection, and centralized monitoring platforms.
When CCTV operates in isolation, it only records events. When integrated, it becomes part of a coordinated security response system that can correlate events in real time and improve decision-making speed.
This shift toward integration is especially relevant in structured security environments across Egypt, where organizations increasingly require centralized visibility across multiple systems and locations.
Industry frameworks from ASIS International highlight this transition toward integrated security architecture. Their approach emphasizes that security effectiveness depends on system interaction rather than individual components.
You can explore more here:

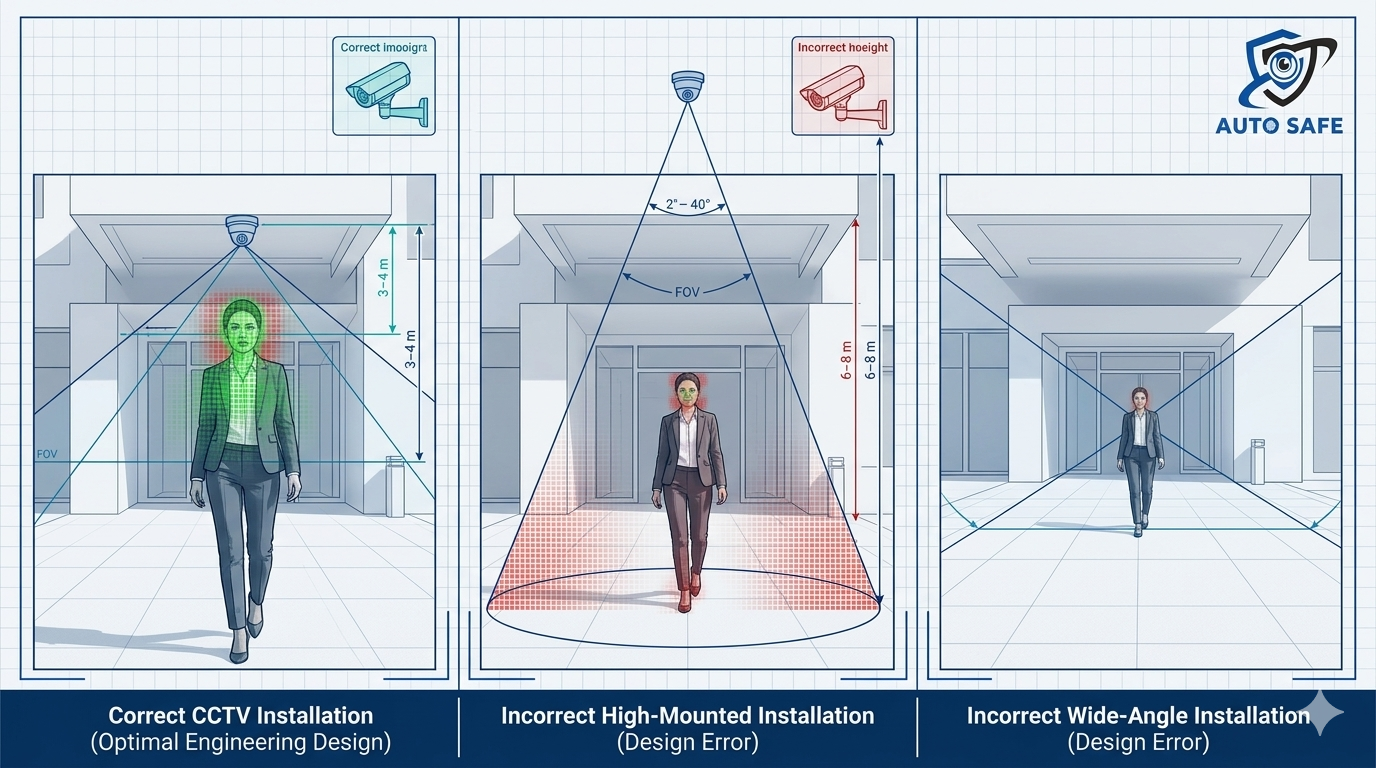

Technical Visualization Asset: CCTV Angle vs Identification Accuracy
This section represents a ready-to-use engineering visualization concept that can be directly generated as a technical image for educational and marketing use.
The purpose of this visual is to clearly demonstrate how camera height and angle directly impact identification quality in CCTV systems, even when using identical hardware specifications.
The illustration should be based on a single controlled environment such as a building entrance and must compare three installation scenarios side by side:
- A correctly engineered camera installation with optimal height and direct facial capture alignment
- A high-mounted camera installation producing steep downward angle distortion and reduced facial clarity
- A wide-angle installation where subjects appear too small due to excessive field coverage
To ensure technical accuracy, the visual must include:
- Pixel density heatmap highlighting facial regions in each scenario
- Field of view projection lines showing coverage differences
- Measurement indicators for camera height and target distance
- Clear visual distinction between usable and unusable identification quality
The design style should follow a clean engineering blueprint approach, emphasizing precision and technical clarity rather than artistic interpretation. The background should remain minimal, with subtle blue and gray tones and red highlights used only to indicate design flaws.
Aspect ratio: 16:9
Output type: Technical security engineering diagram for CCTV system design education
Conclusion: CCTV Performance is Engineered, Not Installed
The effectiveness of a CCTV system is not determined by equipment specifications alone. It is determined by how well the system is engineered to meet a defined security objective.
Resolution, brand, or number of cameras are secondary factors compared to design logic, placement accuracy, and system integration. When these elements are properly aligned, CCTV becomes a reliable tool for actionable security intelligence rather than passive recording.
At Autosafe, we apply an engineering-first methodology across CCTV projects in Egypt 2026, ensuring that every system is designed around measurable performance criteria rather than assumptions. The result is surveillance infrastructure that delivers clarity, reliability, and real operational value.
