The Complete Guide to CCTV Surveillance Cameras
Engineering Precision in Modern Security Systems in Egypt 2026
In today’s security landscape, CCTV is no longer about simply installing cameras across a site. A truly effective surveillance system is the result of careful engineering decisions, where every variable—lens selection, distance, pixel density, and field of view—directly impacts performance.
This guide translates real-world engineering practices into a clear methodology for designing high-performance CCTV systems that deliver usable, actionable footage across projects in Egypt 2026.
Understanding Camera Placement: It Starts with the Lens
One of the most common mistakes in CCTV design is assuming that camera placement is dictated by the environment. In reality, the opposite is true.
The lens defines the placement, not the location.
Every camera comes with a technical datasheet that specifies the correct mounting height and optimal distance from the target. These values are calculated to ensure the camera achieves the required level of detail.
If a camera is installed without respecting these parameters, the result is simple:
you may capture video—but you won’t capture useful information.
Defining the Surveillance Objective
Before selecting a camera, the first step is defining what level of detail is required. Surveillance systems are built around four distinct operational scenarios, each with a different purpose.
Some environments only require a general overview, while others demand precise identification. Understanding this distinction is what separates a basic installation from a professionally engineered system.
Surveillance Levels Comparison
| Scenario | What You Can See | Detail Level | Typical Use Case |
|---|---|---|---|
| Overview | Detect presence (person or vehicle) | Very Low | Large areas, parking spaces |
| General Surveillance | Identify object type and activity | Low–Medium | Daily monitoring and operations |
| Recognition | Recognize familiar individuals | Medium–High | Offices and controlled areas |
| Identification | Clearly identify any person (face-level) | Very High | Entrances and high-security zones |

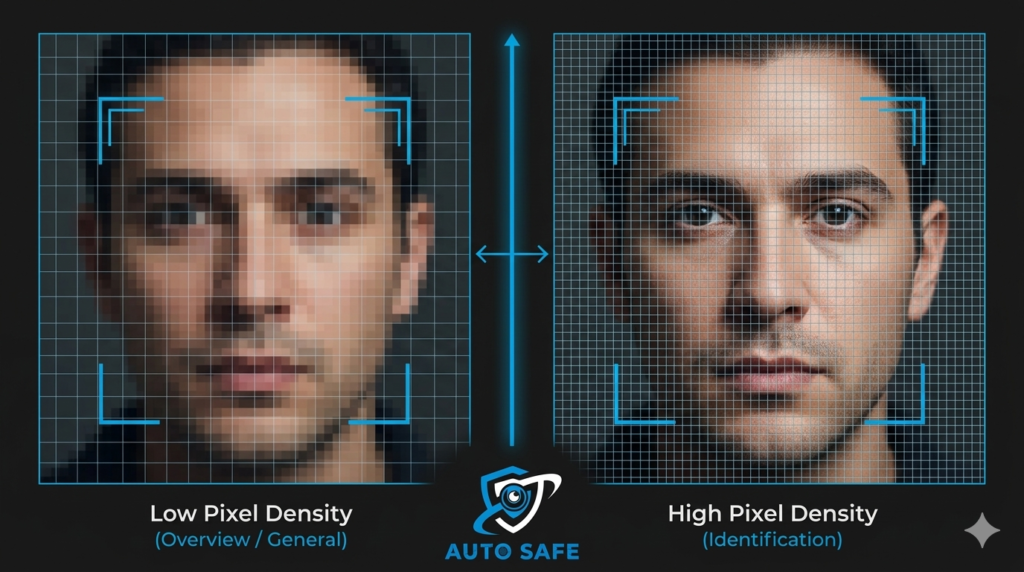

Pixel Density: The Real Measure of Image Quality
Resolution alone does not guarantee clarity. What truly determines whether a camera can identify a face or read a license plate is pixel density, measured in pixels per inch (PPI) or per meter.
Each surveillance objective requires a minimum pixel density. If this threshold is not met, the footage becomes insufficient regardless of camera resolution.
Pixel Density Requirements
| Scenario | Required Pixel Density (PPI) | Result |
|---|---|---|
| Overview | 1–2 PPI | Detect movement only |
| General | 2–3 PPI | Understand basic activity |
| Recognition | ~3–4 PPI | Recognize familiar faces |
| Identification | 4–8+ PPI | Clear facial identification |
| License Plate | 6–10+ PPI | Accurate plate recognition |
Calculating the Correct Camera Distance
Accurate camera placement depends on understanding the true distance between the camera and the target. This distance is not just horizontal—it is the diagonal distance calculated using both height and separation.

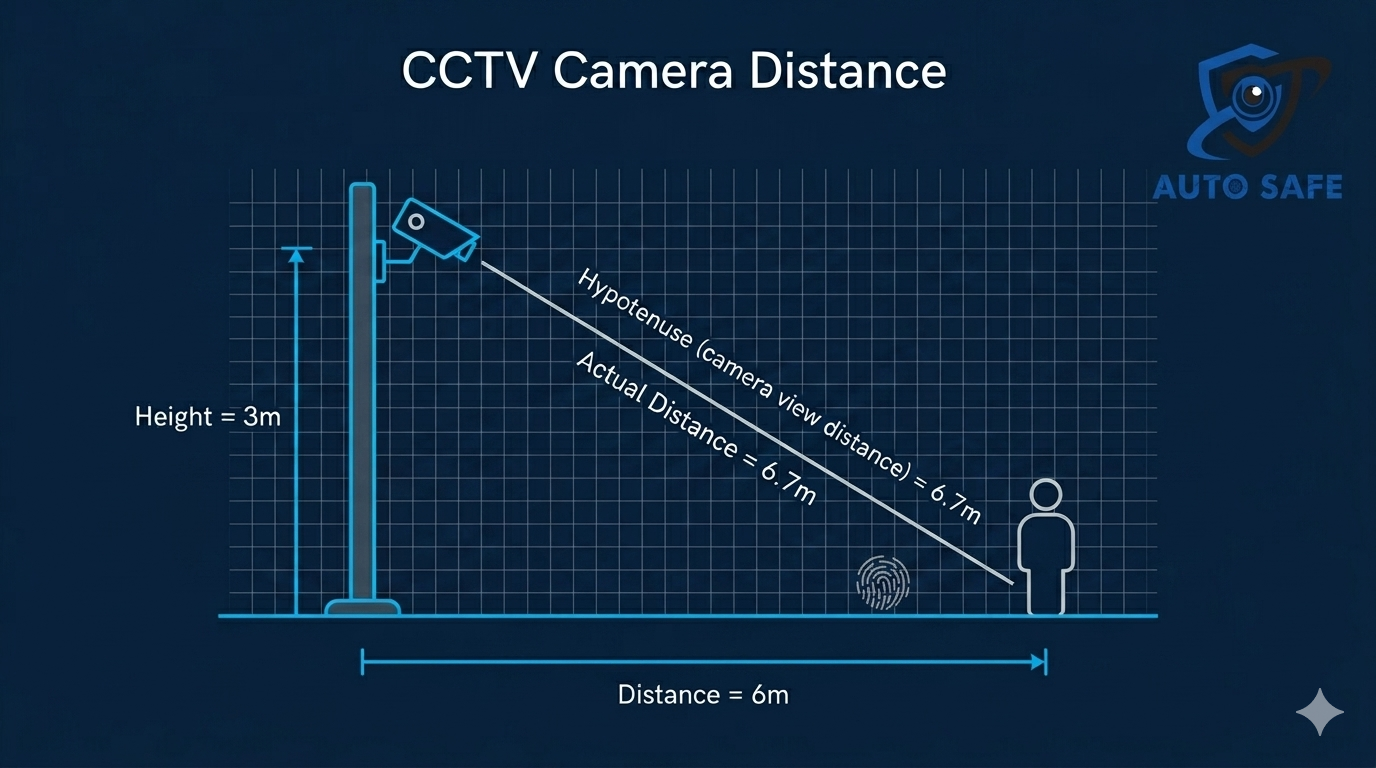

When a camera is mounted at a height of 3 meters and positioned 6 meters away from the target, the actual viewing distance becomes approximately 6.7 meters.
This calculation directly impacts lens selection and determines whether the required pixel density can be achieved. Many manufacturers provide lens calculators that simplify this process by allowing you to input scene dimensions and receive the optimal lens specification instantly.
Field of View: Capturing What Actually Matters
The field of view represents the visible area captured by the camera after selecting the lens and aspect ratio.
A wider view is not always better. In many cases, it introduces unnecessary elements such as sky or empty space, reducing the effective pixel density on important objects.
A well-designed CCTV scene focuses only on relevant areas. Adjusting the camera angle slightly downward or selecting a narrower lens can dramatically improve clarity without changing the camera itself.
Aspect Ratio and Scene Optimization
Aspect ratio defines how the image is framed and how pixels are distributed across the scene.
A wide format such as 16:9 is suitable for open environments and general monitoring. Narrower formats like 5:4 are more effective in corridors, streets, and long pathways where depth matters more than width.
A balanced 4:3 ratio works well in mixed environments, providing a compromise between horizontal and vertical coverage.
When combined with the correct lens, aspect ratio plays a major role in maximizing usable image data.
The Three Factors That Control Image Quality
Beyond positioning and optics, image quality is controlled by three fundamental camera parameters that must be carefully balanced.
Camera Settings Impact
| Factor | Function | Impact if Misconfigured |
|---|---|---|
| Aperture | Controls the amount of light entering lens | Image becomes too dark or overexposed |
| Shutter Speed | Controls how motion is captured | Motion blur or unnatural freezing |
| ISO | Controls sensor sensitivity to light | Noise and grain in the image |
These three factors work together. Increasing shutter speed to capture fast movement may require adjusting aperture or ISO to maintain proper exposure. Poor balance between them often leads to unusable footage, especially in low-light or high-motion environments.
Final Insight: CCTV is Engineering, Not Installation
A successful CCTV system is not defined by the number of cameras or their resolution. It is defined by how well it achieves its purpose. A poorly designed high-resolution system will always underperform compared to a properly engineered system that uses the correct lens, positioning, and pixel density.
At its core, CCTV design comes down to one critical question: What do you need to see—and how clearly do you need to see it?
At Autosafe, we apply this engineering-driven approach to every project, delivering fully customized CCTV surveillance solutions across Egypt 2026 that are designed around real operational needs—not assumptions. From initial assessment to system design and deployment, our focus is on ensuring that every camera installed provides meaningful, reliable, and actionable visibility.
